  • HY10S MINI EXCAVATOR for sale-small excavator

    Small excavators are very suitable for farm orchard and small construction site and rural families. Application scenarios include farm trenching, aqua toilet renovation, vegetable greenhouse trenching, green belt repair, etc.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits

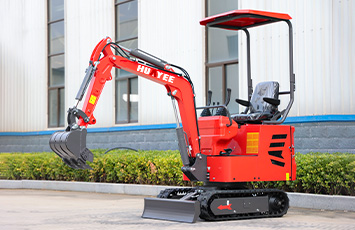

    • 1-HY10S-MINI-EXCAVATOR

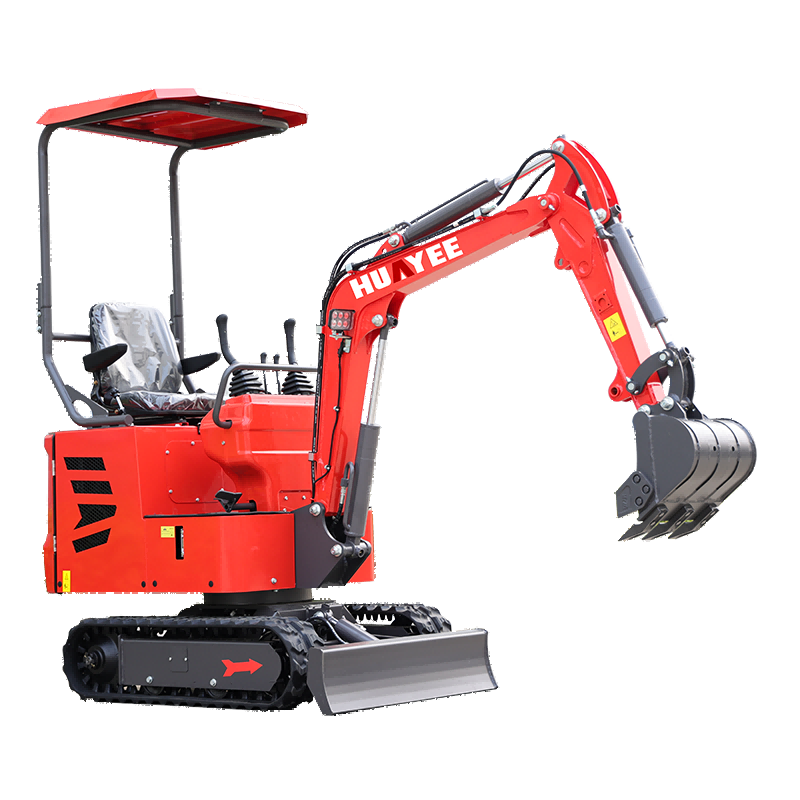

    • 2-HY10S-MINI-EXCAVATOR

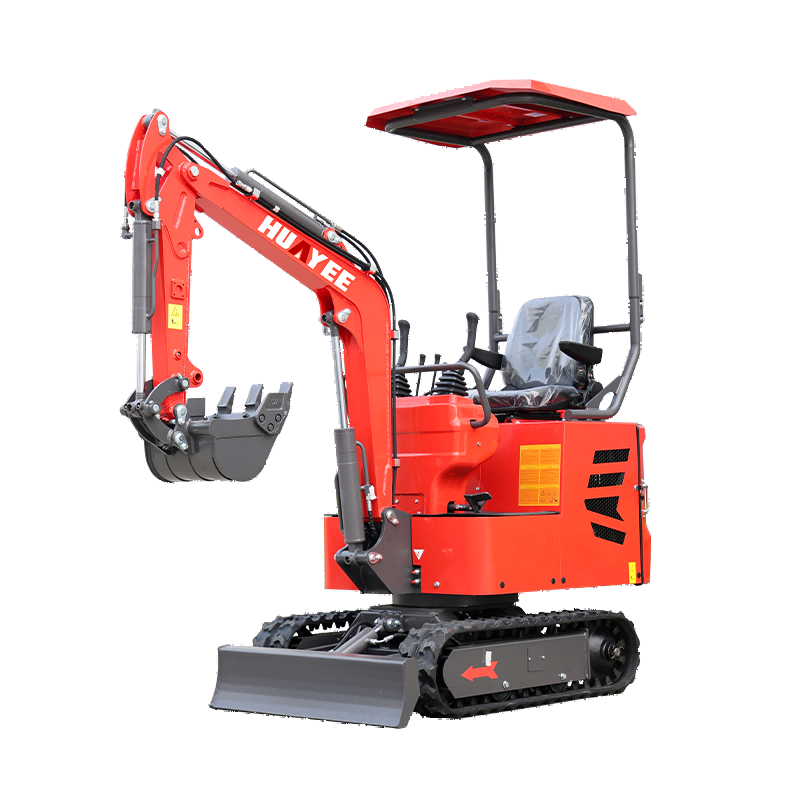

    • 3-HY10S-MINI-EXCAVATOR

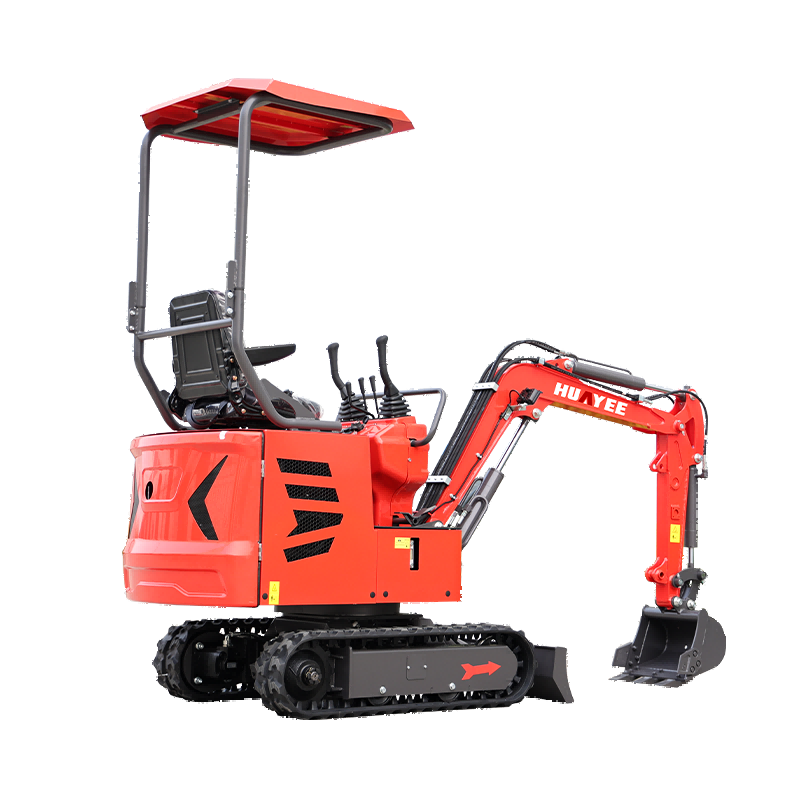

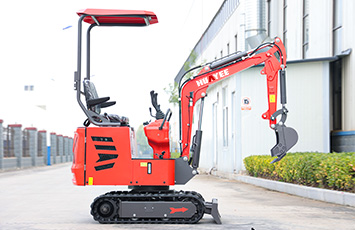

    • 4-HY10S-MINI-EXCAVATOR

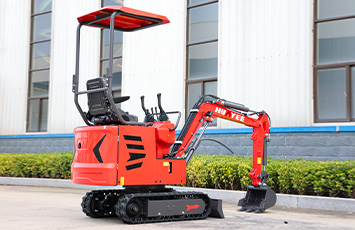

    • 5-HY10S-MINI-EXCAVATOR
HY10S MINI EXCAVATOR Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini excavator
HY10S MINI EXCAVATOR

Flexible And Powerful


HY10E is a mini model excavator,It is suitable for working in outdoor environments such as farms and yards.

  • Operating Weight 1000KG
  • Bucket Capacity 0.022m³
  • Power 10.2HP
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE

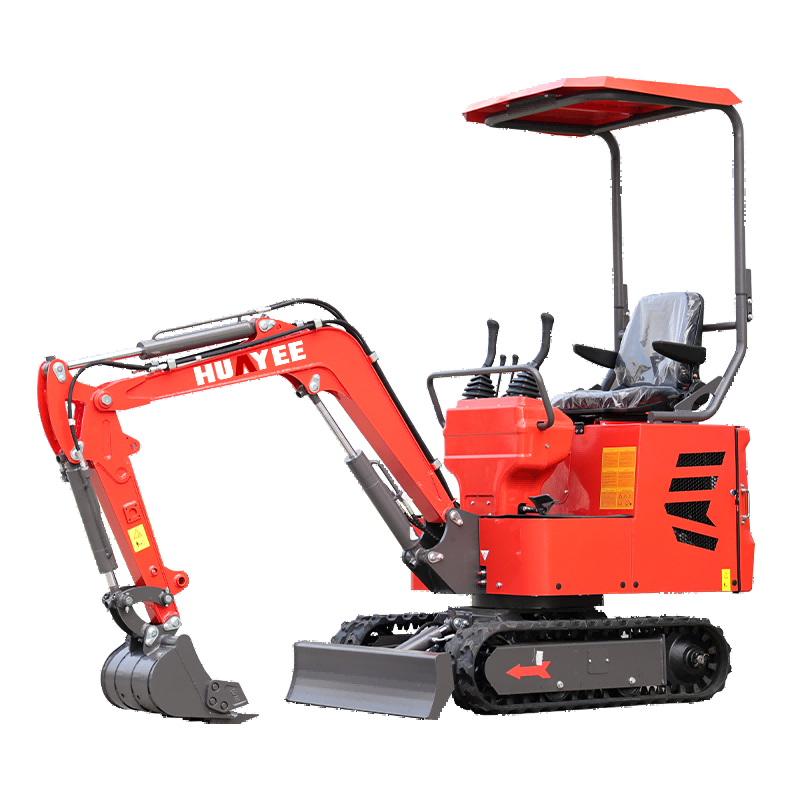

  • 1-HY10S-MINI-EXCAVATOR
  • 2-HY10S-MINI-EXCAVATOR

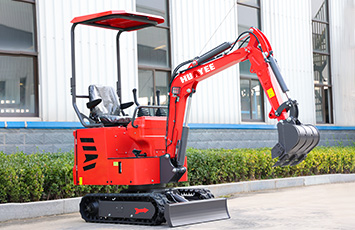

  • 3-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/accessories/etc


    We can provide you with exclusive customization services,and will produce the products you want according to your requirements, including but not limited to logo customization, color customization ,engine customization and accessories customization.

  • EPA/EURO V ENGINE.CE CERTIFICATED


    Standard with Koop engine. fuel saving and powerful performance; Also can choose Briggs & Stratton engine to meet the North America market.Brand engine, durable and convenient after sale.

  • SIMPLE CONTROL，EASY MAINTENANCE


    Compact dimensions , Safety Frame, rear opening engine compartment design Daily inspection and maintenance are simple and quick.

About Accessories
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
  • 4-HY10S-MINI-EXCAVATOR
parmeters
Parameter
Operating Weight 1000 kg
Bucket Capacity 0.022 m³
Chassis Width 930 mm
Volume of fuel tank 8 L
Gradeability 30°
Maximum digging force 6.5kn
Engine / Dimensions
Engine KO0P192FABRIGGS&STRATTON
Power 7.6kw/10.07kw
Maximum driving speed 1.2km/h
Hydraulic tank capacity 18L
Engine oil capacity 1.65L
Machine size(L*W*H) 2870*930*2213mm
Work pressure 16mpa
Performance Specifications
Maximum digging height 2490mm
Maximum unloading height 1745mm
Maximum digging depth 1725mm
Maximum vertical arm digging depth 1655mm
Maximum digging distance 3030mm
Minimum turning radius of front end 1490mm
Maximum digging ground distance 2940mm
