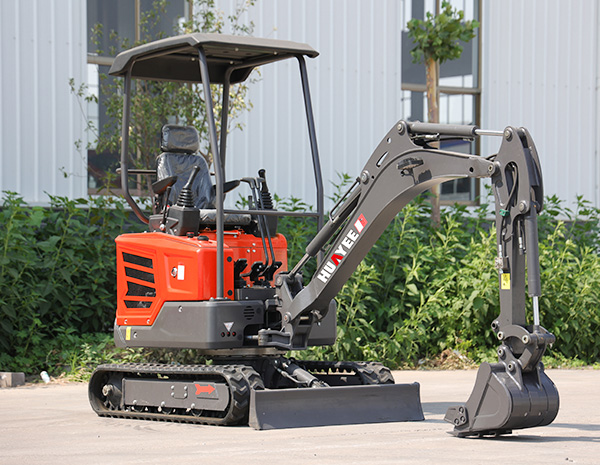

  • HY20 mini excavator for sale-small excavator

    Small excavators are very suitable for farm orchard and small construction site and rural families. Application scenarios include farm trenching, aqua toilet renovation, vegetable greenhouse trenching, green belt repair, etc.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits

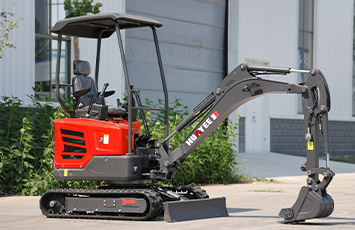

    • 1-HY20-MINI-EXCAVATOR

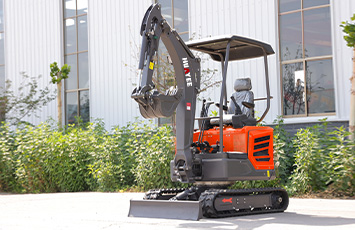

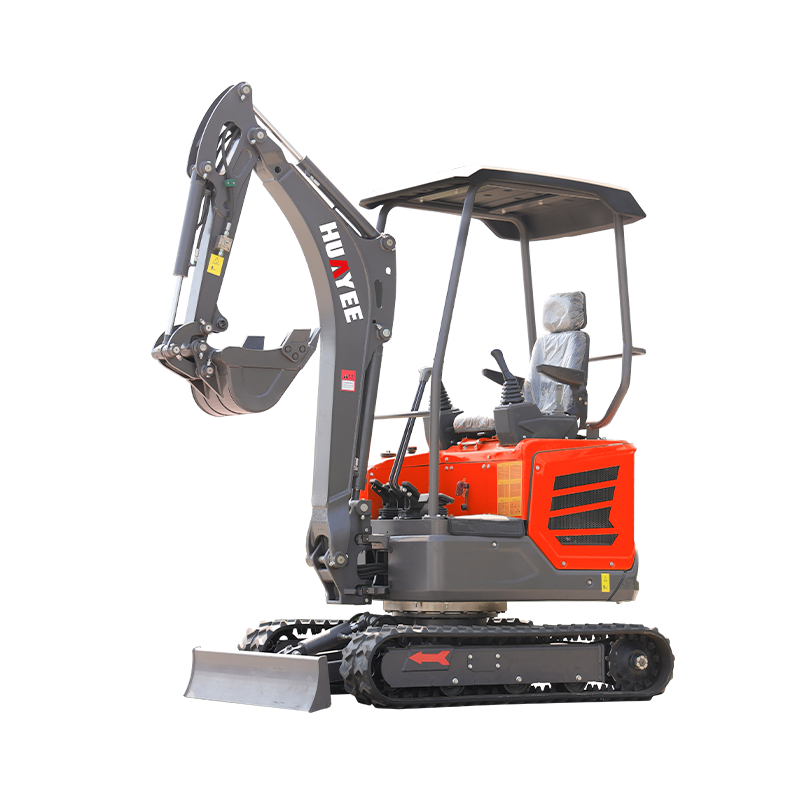

    • 2-HY20-MINI-EXCAVATOR

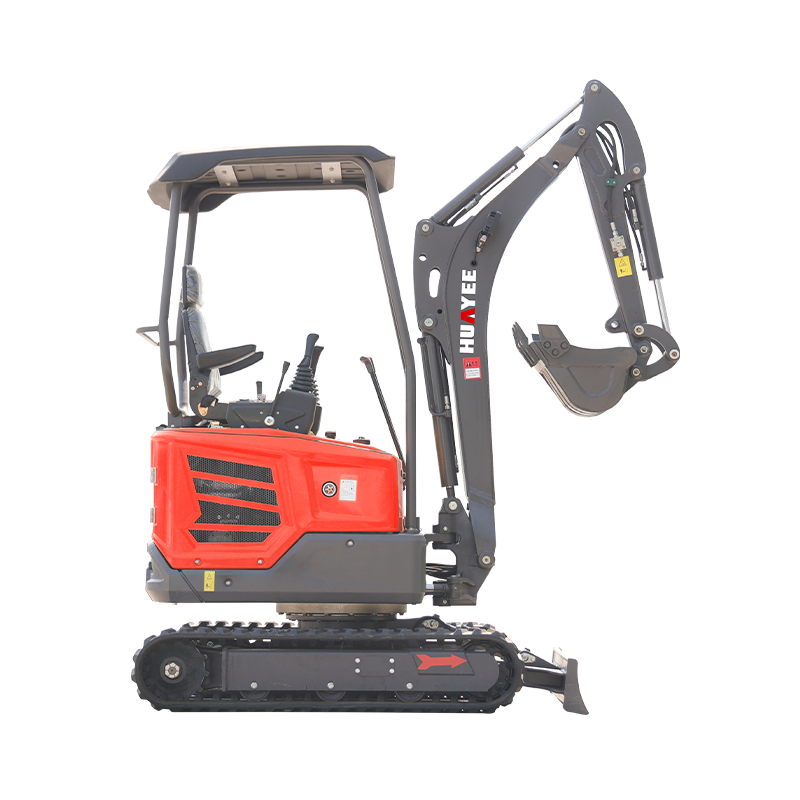

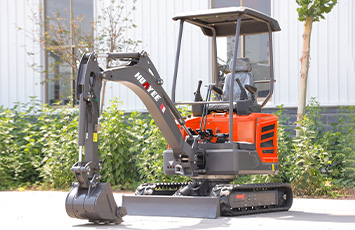

    • 3-HY20-MINI-EXCAVATOR

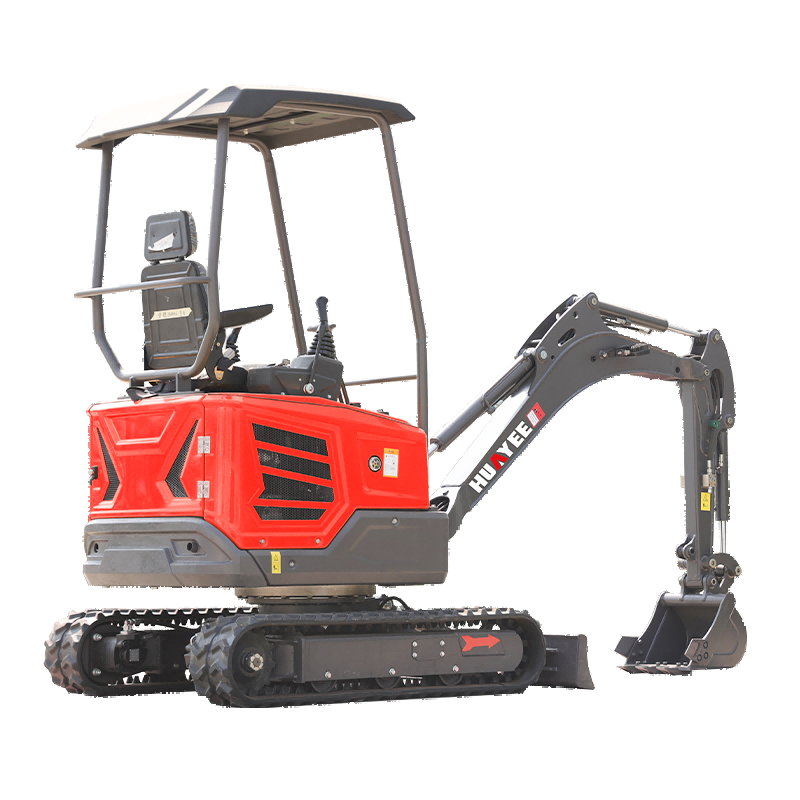

    • 4-HY20-MINI-EXCAVATOR

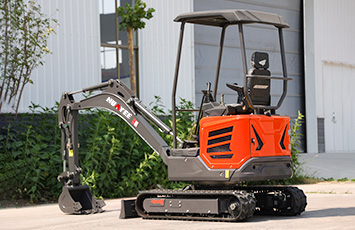

    • 5-HY20-MINI-EXCAVATOR
HY20 mini excavator Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini excavator
HY20 mini excavator

Flexible And Powerful

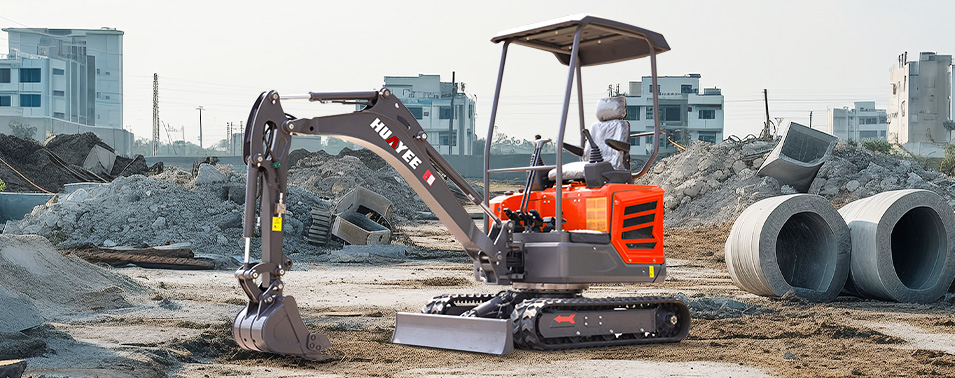

HY20 is a mini excavator suitable for outdoor operations such as farms and construction sites.

  • Operating Weight 2000kg
  • Bucket Capacity 0.03m³
  • Power 15.8/24.3HP
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
  • 1-HY20-MINI-EXCAVATOR
  • 2-HY20-MINI-EXCAVATOR
  • 3-HY20-MINI-EXCAVATOR

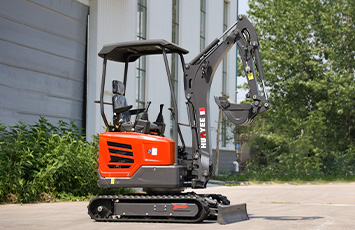

  • 4-HY20-MINI-EXCAVATOR

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/accessories/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization ,engine customization and accessories customization.

  • EPA/EURO V ENGINE.CE CERTIFICATED


    Standard with Laidong 385/kubota D722 diesel engine. fuel saving and powerful performance; increase noise reduction cotton, great heat dissipation.

  • SIMPLE CONTROL，EASY MAINTENANCE


    Compact dimensions , 4 roofs Safety Frame, Hydraulic Pilot Operating Lever Design Daily inspection and maintenance are simple and quick.

About Accessories
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
  • 4-HY20-MINI-EXCAVATOR
parmeters
Parameter
Engine KUBOTA D902/LAIDONG KM385B
Power 11.8klw/18.1kw
Swing Speed 10r/min
Bucket Capacity 0.03m³
Operating Weight 2000kg
Track Length 1625mm
Dozer Blade Height 160mm
Fuel Tank Capacity 19L
Maximum Climbing Ability 30°
Maximum Digging Force /
Machine Size(L*W*H) 3468*1200*2270mm
Maximum Digging Height 3485mm
Maximum Unloading Height 2440mm
Maximum Digging Depth 2290mm
Maximum Vertical Arm Digging Depth 1750mm
Maximum Digging Distance 3790mm
Minimum Turning Radius 1395mm
Maximum Digging Ground Distance 3735mm
Track Material Rubber
