  • HY16 mini excavator for sale-small excavator

    Small excavators are very suitable for farm orchard and small construction site and rural families. Application scenarios include farm trenching, aqua toilet renovation, vegetable greenhouse trenching, green belt repair, etc.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits
    • 1-HY16-MINI-EXCAVATOR

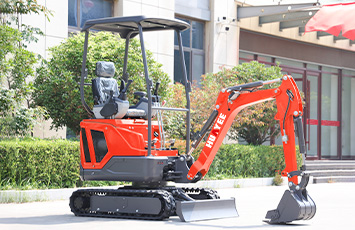

    • 2-HY16-MINI-EXCAVATOR

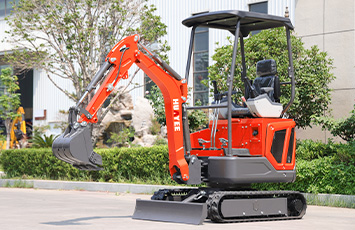

    • 3-HY16-MINI-EXCAVATOR
    • 4-HY16-MINI-EXCAVATOR
    • 5-HY16-MINI-EXCAVATOR
HY16 mini excavator Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini excavator
HY16 mini excavator

Mini and powerful


HY16 is a mini excavator suitable for outdoor operations such as farms and construction sites.

  • Operating Weight 1600kg
  • Bucket Capacity 0.03m³
  • Power 13.6/25.4HP
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
  • 1-HY16-MINI-EXCAVATOR
  • 2-HY16-MINI-EXCAVATOR
  • 3-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/accessories/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization ,engine customization and accessories customization.

  • EPA/EURO V ENGINE.CE CERTIFICATED


    Standard with Koop engine, Briggs & Stratton engine,Kubota engine, fuel saving and powerful performance;

  • SIMPLE CONTROL，EASY MAINTENANCE


    Compact dimensions , Safety Frame, rear opening engine compartment design Daily inspection and maintenance are simple and quick.

About Accessories
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
  • 4-HY16-MINI-EXCAVATOR
parmeters
Parameter
Engine KUBOTA D722-E4B/LAIDONG LL380B
Power 10.2kw/19kw
Bucket capacity 0.03m³
Maximum driving speed 1.8km/h
Work pressure 16+3mpa
Hydraulic tank capacity 17L
Engine oil capacity 1.65L
Fuel tank capacity 3L
Maximum climbing ability 30°
Maximum digging force /
Machine size(L*W*H) 3060*1100*2220mm
Maximum digging height 2970mm
Maximum unloading height 2030mm
Maximum digging depth 1780mm
Maximum vertical arm digging depth 1550mm
Maximum digging distance 3420mm
Minimum turning radius of front end 1350mm
Maximum digging ground distance 3380mm
