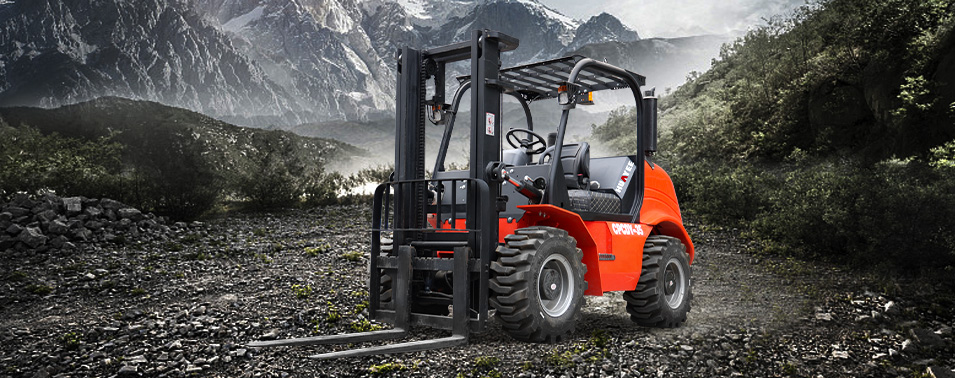

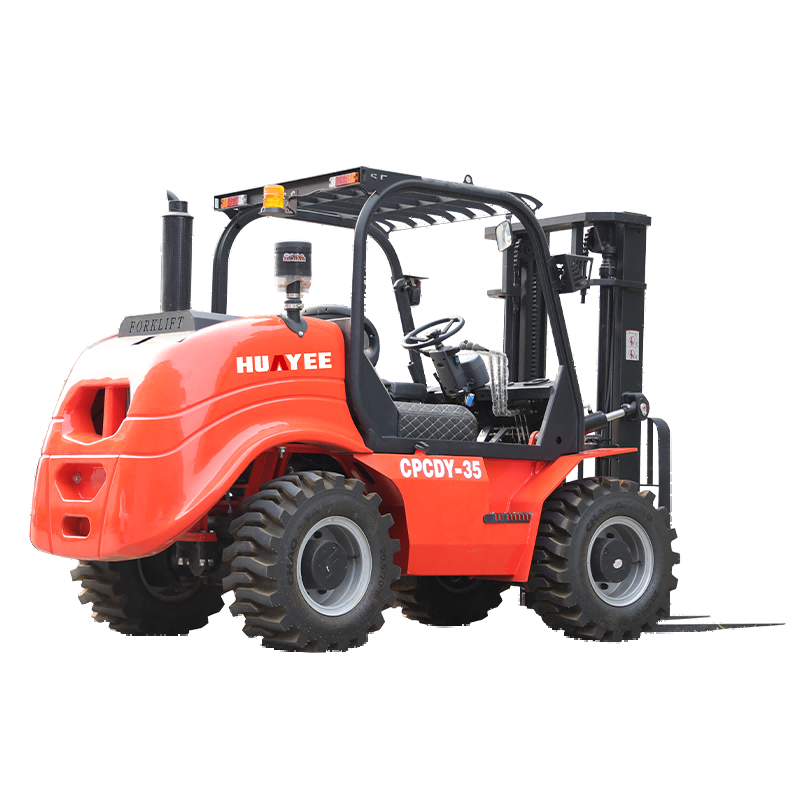

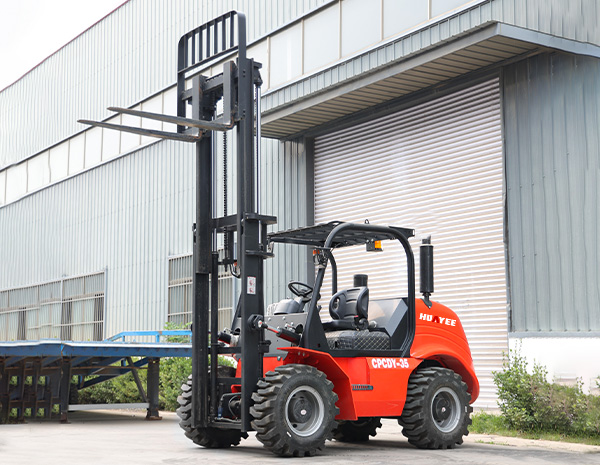

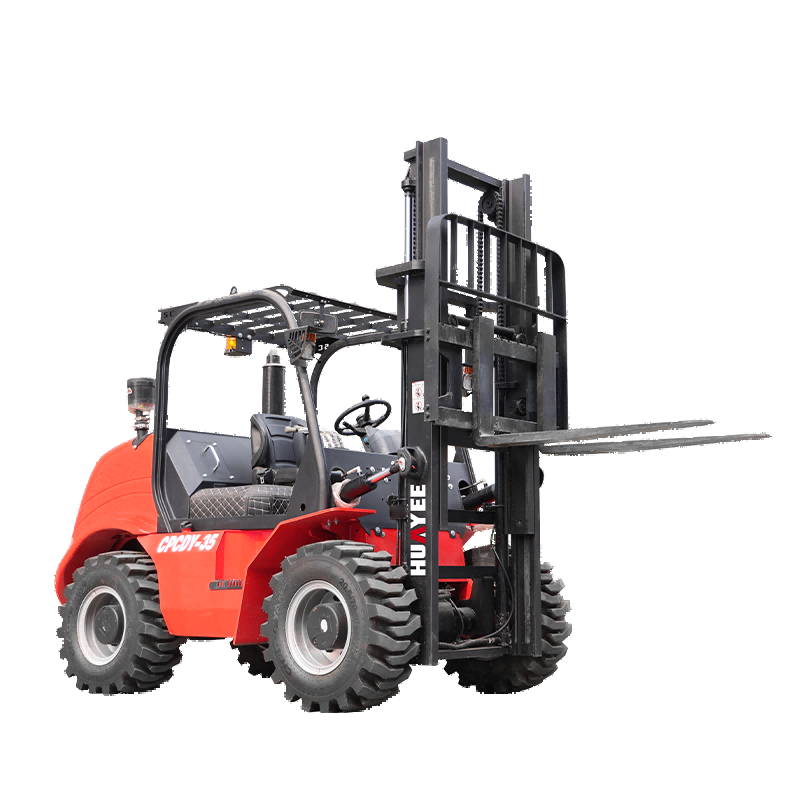

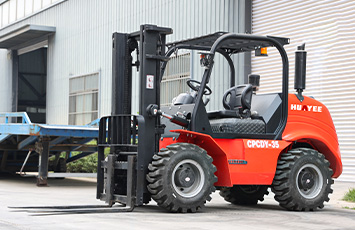

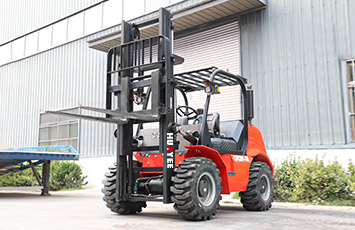

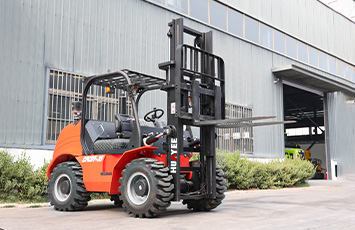

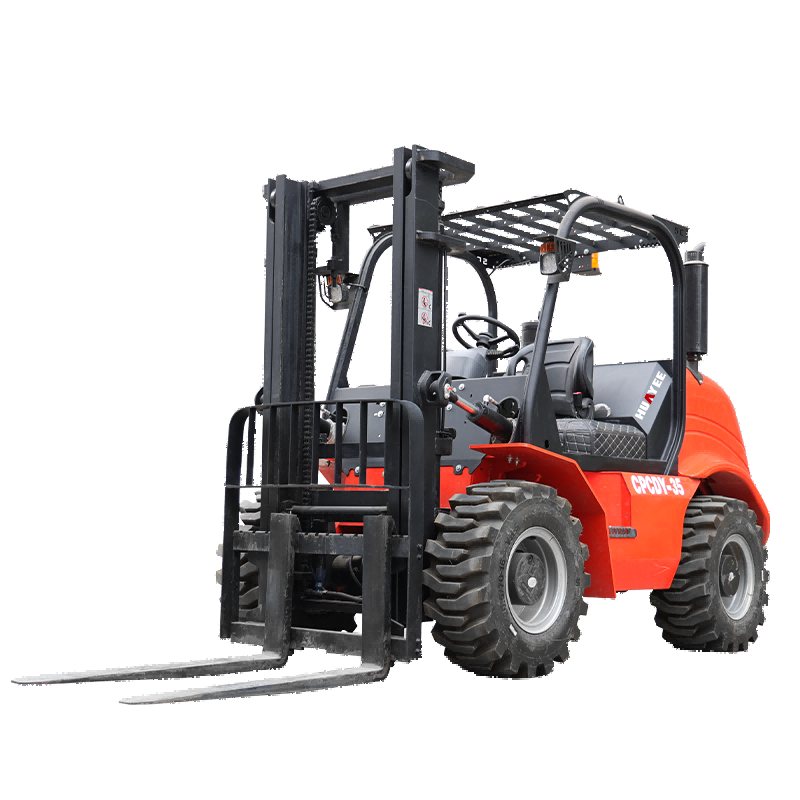

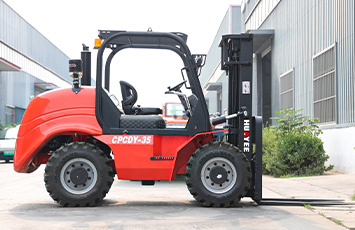

HYF35H All Terrain Forklift -
HYF35H All Terrain Forklift
HUAYEE All-Terrain Forklifts have unique performance in the material handling solutions market. Their reliability is recognized by the most demanding professionals throughout the world. Would you like to buy or rent a HUAYEE All-Terrain Forklifts? Your dealer will respond to your needs as soon as possible. Contact our professionals at any time to benefit from our personalized services.
-

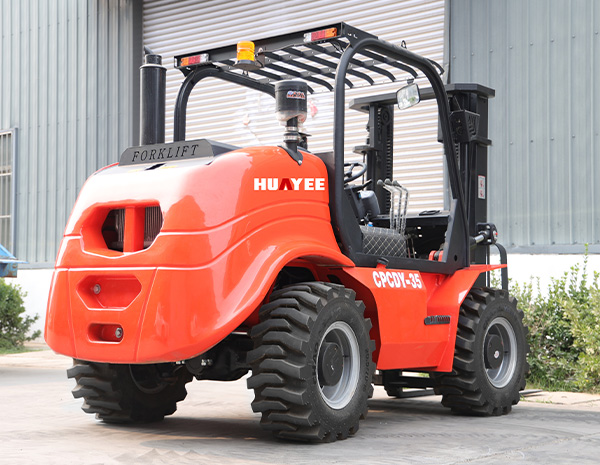

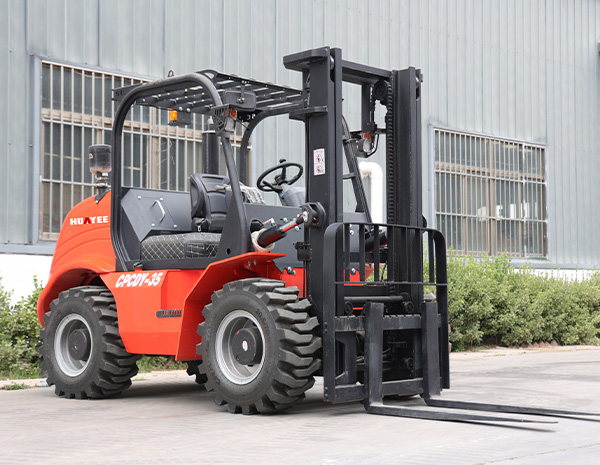

HYF35H All Terrain Forklift
Excellent Performance
For a great return on your investment, and low total cost of ownership, you can’t beat the energy efficiency, performance, durability and easy maintenance of our range of lift trucks. Equipped to withstand harsh duties and conditions, and easily programmable, you will find flexible, operator-friendly models for an impressive variety of uses.- Rated Lifting Force 3500KG
- Engine YUNNEI
- Lifting Height 3000-6000mm
-
-
-
CUSTOMIZABLE STARTING FROM ONE PIECE
We can provide you with exclusive customization services, including color, logo, engine and lifting height, etc. The forklift transmission system innovatively developed by HUAYEE provides fast directional changes, excellent performance, and excellent traction, with strong power and a maximum lifting height of up to 6 meters.
-
-
-
EXCELLENT PERFORMANCE
Equipped with reliable, high-efficiency engines, the machines deliver stable power output and consistent performance during continuous operation. Well-matched engine and hydraulic systems ensure smooth control, strong working capability, and efficient response under real job-site conditions. Optimized fuel efficiency and compliant engine configurations help reduce operating costs while meeting EPA Tier IV Final and EU Stage V emission standards.
-
-
-
EASY MAINTENANCE
By assisting the engine hood with air springs and integrating the engine hood lock, it is possible to quickly inspect the engine and other components. During the warranty period, if the machine's vulnerable parts are damaged, free replacement is supported. Engineers provide 24-hour online service and worry free after-sales service.
Characteristics |
|
Size |
3200x1500x2300mm |
Curb Weight |
5500kg |
Fork Length |
1220mm ( customizable） |
Climbing Angle |
≤38° |
Rated Lifting Force |
3500kg |
Lifting Height |
3000-6000mm |
Turning Radius |
2500mm |
Door Frame Width |
160mm |
Load center distance |
600mm |
Wheelbase |
1697mm |
Tire |
12-16.5 Enhanced |
Drive Mode |
Four-wheel drive |
Engine Model |
YUNNEI-495 Diesel engine |
Engine Power |
55kw |
Fuel Tank Volume |
50L |
