  • HY480Z Mini Skid Steer Loader

    The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits
    • 1-HY480Z-MINI- SKID-STEER -LOADER

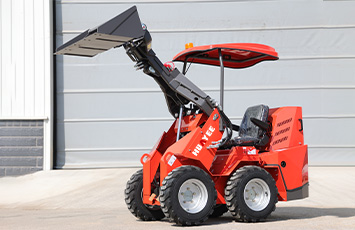

    • 2-HY480Z-MINI- SKID-STEER -LOADER

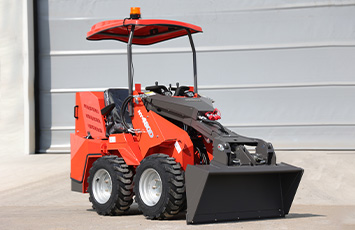

    • 3-HY480Z-MINI- SKID-STEER -LOADER

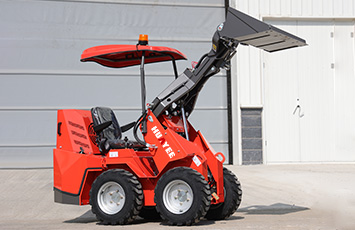

    • 4-HY480Z-MINI- SKID-STEER -LOADER

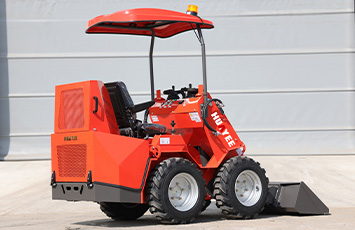

    • 5-HY480Z-MINI- SKID-STEER -LOADER
HY480Z Mini Skid Steer Loader Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini skid steer loader
HY480Z Mini Skid Steer Loader

The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
It is mainly suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, etc.

  • Engine Power 20/23HP
  • Dimensions 2570*1140*1860
  • Operating Weight 350kg
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE

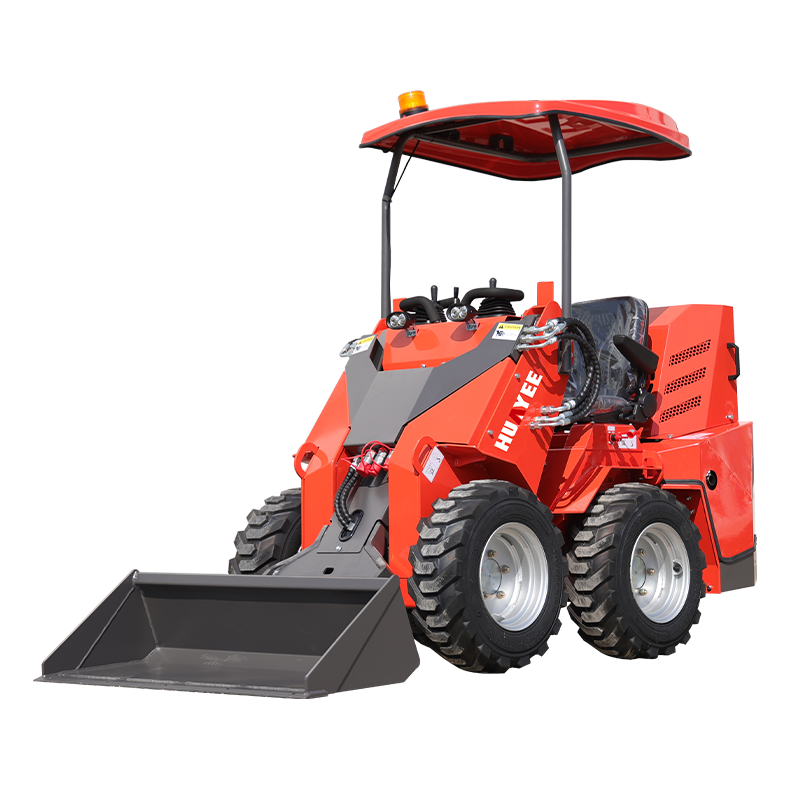

  • 1-HY480Z-MINI-SKID-STEER-LOADER

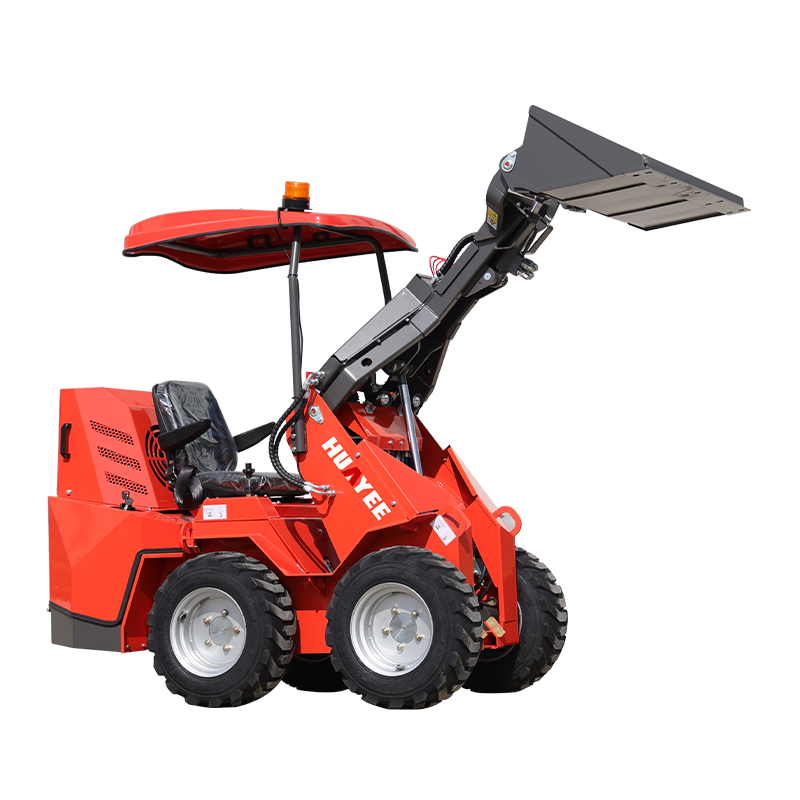

  • 2-HY480Z-MINI-SKID-STEER-LOADER

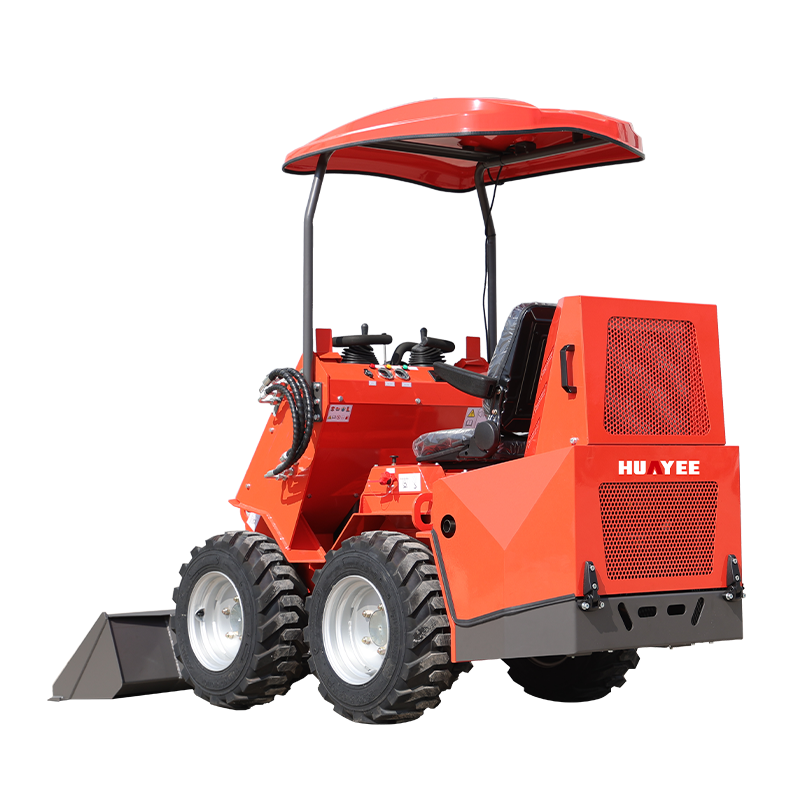

  • 3-HY480Z-MINI-SKID-STEER-LOADER

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization .

  • EPA/EURO V ENGINE


    High performance engines have durability and excellent fuel efficiency,optional Briggs&Stratton, RATO engine.

  • EASY OPERATING，SIMPLE MAINTENANCE


    Compact dimensions , Wide range of uses.

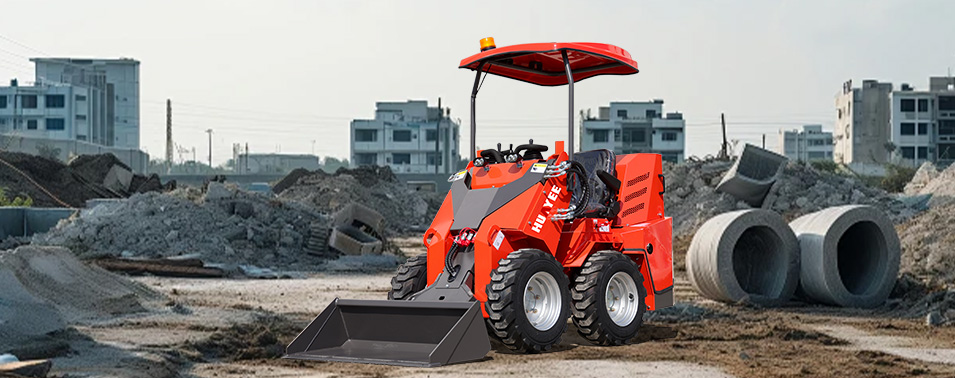

    It is an ideal choice for working in places where the site is small, the ground is undulating, and the job content changes frequently.It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery.

About Accessories
parmeters
Product Parameters
Working Weight 930/900/910 kg
Engine Brand KOOP/ Briggs&Stratton / RATO
Type Diesel/Gasoline /Gasoline
Output Power 20/23/23 HP
Fuel Consumption 4.8/6.7/6.7 Lh
Starting Method Electric Start
Fuel Tank 23L
Engine Oil 3/1.7/1.6L
Hydraulic Oil Tank 23L
Rated Loading Capacity 350 kg
Bucket Capacity 0.15m3
Maximum Lifting Force 800 kg
Working Speed 0-4.3 km/h
Rated Pressure 17 Mpa
Lifting Time 4.5s
Descent Time 3.1s
Tipping Time 1.8s
Climbing Ability 20%
